This product is a high-precision aluminum milling part, made from high-quality aluminum materials through CNC Machining milling. It features light weight, high strength and high dimensional accuracy. It has an excellent surface finish and can be treated with anodizing, electroplating, etc. as needed to enhance the appearance and corrosion resistance. It is widely applied in industries such as aerospace, automobiles, electronics, and mechanical equipment. We support customized drawings, small-batch sampling and mass production, with stable quality and reliable delivery time.
►Common parameters for CNC milling of aluminum materials
| Item | Recommended Range |
| Spindle Speed (RPM) | 8000 – 20000 rpm (High-speed machining preferred) |
| Cutting Speed (Vc) | 300 – 1000 m/min (The softer the material, the higher the speed) |
| Feed Rate (F) | 1000 – 4000 mm/min (Depending on tool diameter) |
| Feed per Tooth (fz) | 0.05 – 0.2 mm/tooth (Larger values for roughing, smaller for finishing) |
| Cutting Depth (ap) | 0.5 – 3.0 mm (Deeper for roughing, shallower for finishing) |
| Cutting Width (ae) | 10% – 60% of tool diameter |
| Tool Material | Carbide (with TiAlN coating or polished) |
| Coolant Method | High-pressure coolant or water-soluble cutting fluid (to prevent built-up edge) |
►We have:
1. Diverse machining materials
| Aluminum | 6061,6063,6061-T6,7075,5052,2017,6082. |
| Iron | Q235,45#,A3,718H,S136,SKD11 |
| Stainless steel | 1.4305(SUS303),1.4301(SUS304),316 |
| Copper/Brass and Titanium | / |
| Plastic | POM,Teflon,PA,PC,PMMA,PEI(Ultem) |

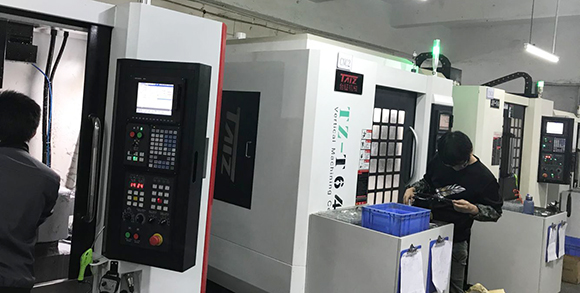

2. Professional CNC machining equipment
Our CNC machine tools are equipped with multi-station tool turrets or power tool turrets. The machine tools have a wide range of processing performance. Our precision parts serve the medical, communication, aerospace, unmanned aerial vehicles, robotics and other industries. We offer the best CNC turning and CNC horizontal/vertical milling services. We have advanced CNC machining equipment such as CNC Machinig Center, 3 Axis,4 axis. CNC Lathe, Lathe CNC Turning Centers,Horizontal 8/12-position hydraulic turret, Milling Machine, Grinding Machine, Drill Press Youdaoplaceholder0 Center, Rotary Indexer, Punch, etc. Machining accuracy can meet ±0.01mm tolerance.
3.Product surface treatment:
- Anodize(Type Ⅰ),Anodize Color(Type Ⅱ), Hard Anodize(Type Ⅲ)
- Hard Anodize Teflon (Machining Aluminum)
- Plating Zinc Color (Machining Steel Parts),
- Electroless Nicke (Machining Aluminum Parts,Machining Stainless Steel Parts,Machining Brass Parts ),
- Passivation (Machining Stainless Steel parts ),
- Sand Blasting (Machining Aluminum parts ),
- Brushed ( Machining Aluminum parts,Machining Stainless Steel parts ),
- Bluing and Blackening (Machining Steel parts),
- Trivalent Chromium Process (Machining Aluminum parts ),
- Welding, brazing, soldering,Centerless Grinding and Burnishing
4. One-stop service
For your CNC machining customization project, we combine cutting-edge technology, mature expertise and precise craftsmanship to provide powerful manufacturing solutions.
